How to Install: SS6 LED Fog Light Kit on 2020-2022 Ford Super Duty

The SS6 LED Fog Light Bar Kit for the 2020-2022 Ford Super Duty allows you to mount a pair of Stage Series 6" LED light bars in place of the factory LED fog light housings. The following installation guide will provide you with step-by-step instructions for how to install the SS6 LED Fog Light Kit on your 2020-2022 Ford Super Duty. Check out our installation video, or continue reading for step-by-step instructions below!

Note: This kit utilizes both factory and included hardware to mount the brackets to the vehicle.

Installation Tools

Installation Video



Mounting Instructions

Step 1 - Remove Bumper Support Brace

Using a ratchet, remove the four 15mm factory bolts holding the bumper support brace.

factory mounting bolt locations

Step 2 - Disconnect Factory Fog Lamp

Unplug the factory lamp and then remove the two wire clips from the factory lamp bracket.

Step 3 - Remove Fog Lamp

Using a ratchet, remove the four 8mm factory bolts holding the lamp to the bumper.

With the factory fog lamp now free, remove the fog lamp from the bumper.

Step 4 - Remove Factory Fog Light from Bracket

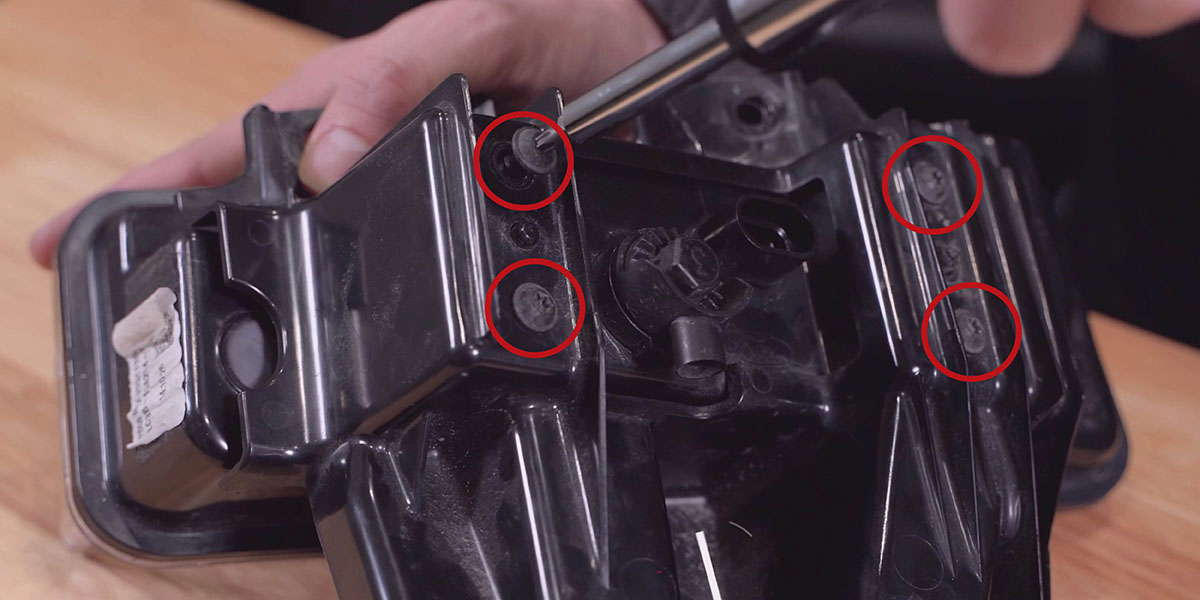

Remove the factory fog light from the factory bracket by unscrewing the four T25 Torx bolts from the back of the housing.

Step 5 - Install SS6 Bracket

Install the SS6 bracket to the factory bracket using the supplied hardware.

Step 6 - Install SS6 Light Bar

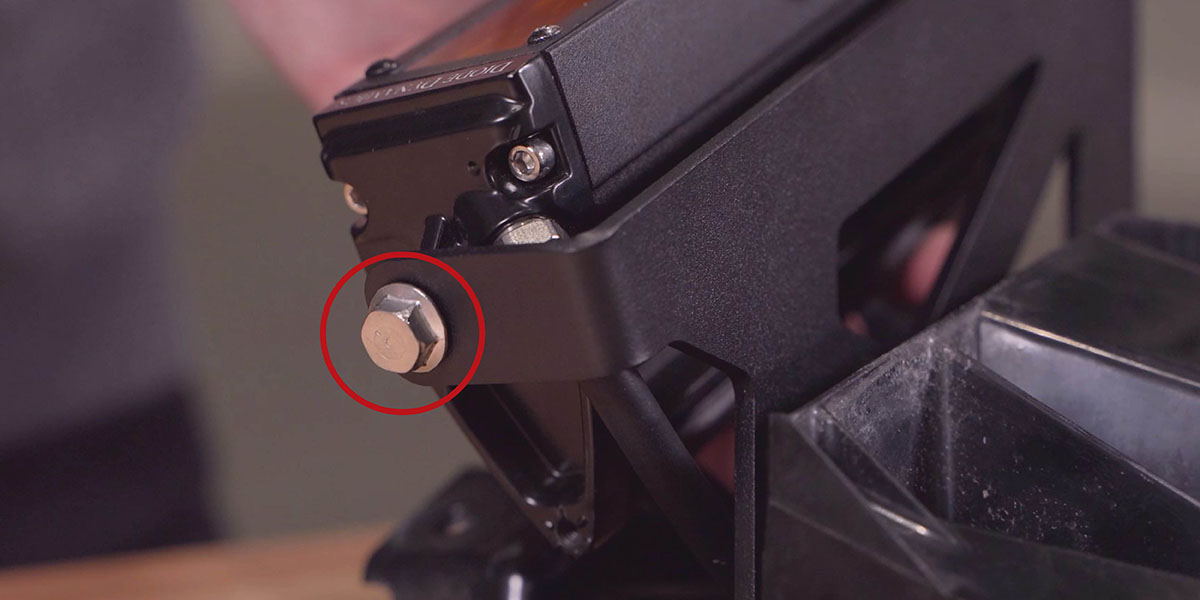

Using the hardware provided with the SS6, install the SS6 light bar to the SS6 bracket firm enough to be able to adjust but not locked in place.

Step 7 - Reinstall Factory Bracket

Using the four 8mm bolts you removed in step 3, reinstall the factory bracket (with the SS6 light bar mounted) back onto the vehicle.

Step 8 - Connect Wiring

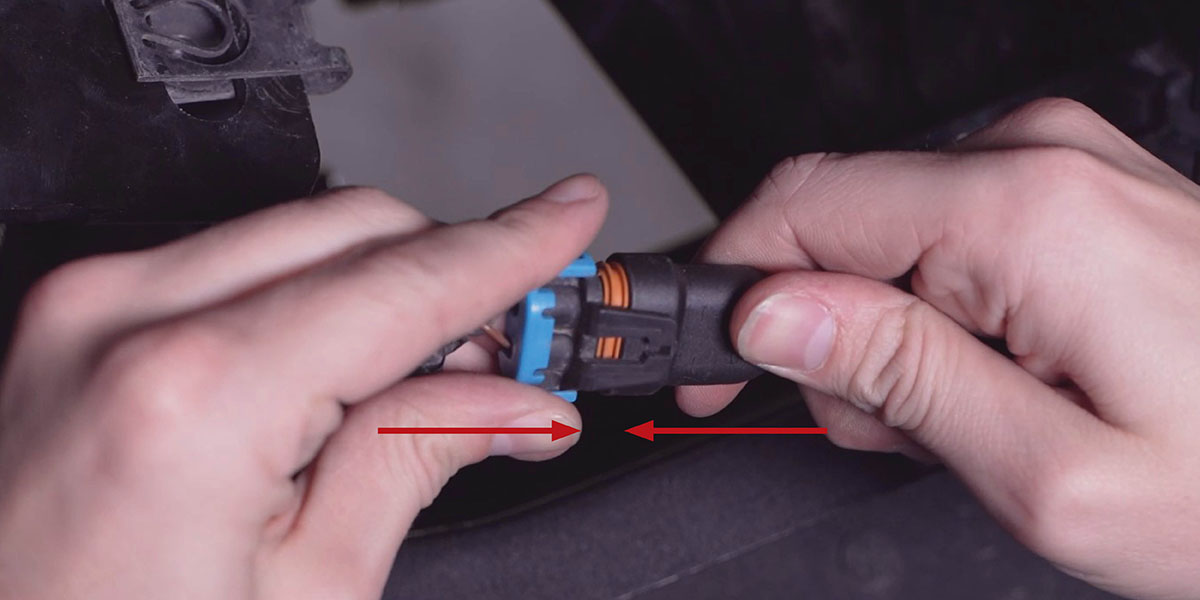

Plug the Diode Dynamics 9006 adapter into the factory wiring and then plug the DT connector into the SS6.

Step 9 - Install Second SS6 Lightbar

Repeat steps 1-8 to install the second SS6 light bar on the other side of the vehicle, and then check for functionality.

Step 10 - Aim SS6 Fog Lights

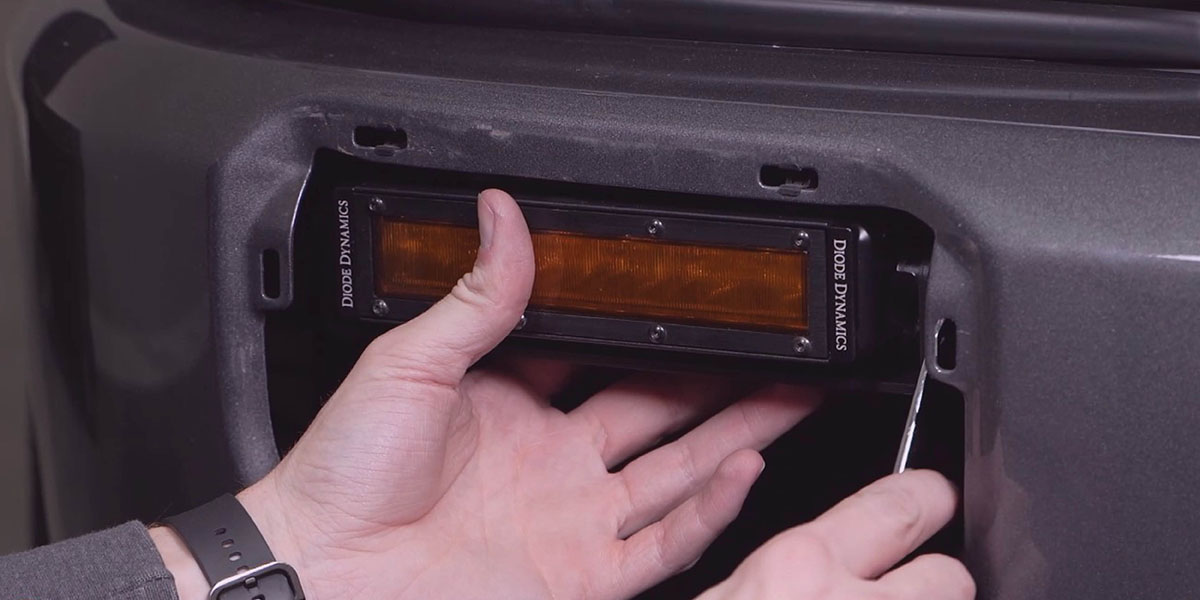

Aim the SS6 fog lights and then tighten the SS6 mounting bolts.

Step 11 - Reinstall Bumper

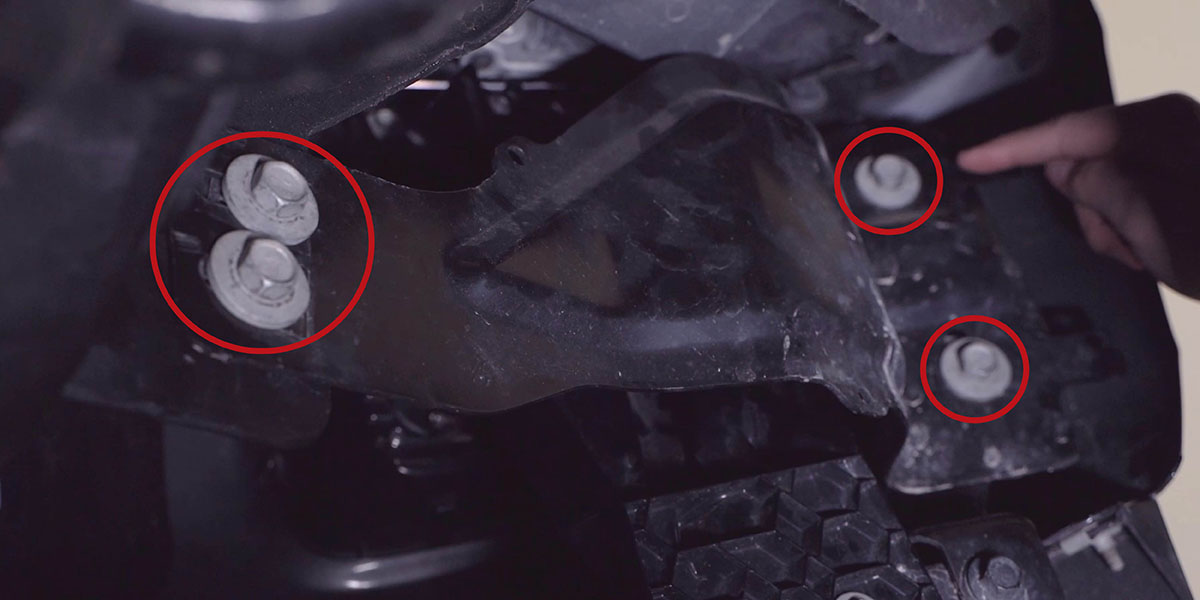

Using a ratchet, reinstall the factory bumper support brace on both sides of the vehicle using the 15mm factory bolts.
