Stage Series Reverse Light Kit for 2021-2022 Ford F-150


LED Pod Size: C2
Power Level: Sport
Optic/Color: White SAE/DOT Fog
Price:
Sale price$279.95
  • Description
  • Specs
  • Installation





Features

  • Allows you to mount SSC1 or SSC2 pods underneath the 2021-2022 Ford F-150 rear bumper.
  • Connects to vehicle wiring for simple, everyday operation of lights.
  • Provides high-power reverse light, and red accent light.
  • Designed and assembled in USA.

Overview

Overview. There are plenty of ways to add light behind your 2021+ F-150, but the new Stage Series Reverse Light Kit stands out with innovations in both function and ease of use. This kit includes an integrated red running light, and our reverse light wiring harness, for simple installation and operation! Thanks to Stage Series TIR optic technology, this kit provides a huge amount of extra reverse light. The included switch allows you to toggle it on any time, or activate automatically with your reverse lights, for a truly integrated solution.

Easy Operation. The harness included with the kit connects to your truck's wiring for simple, everyday operation. The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.

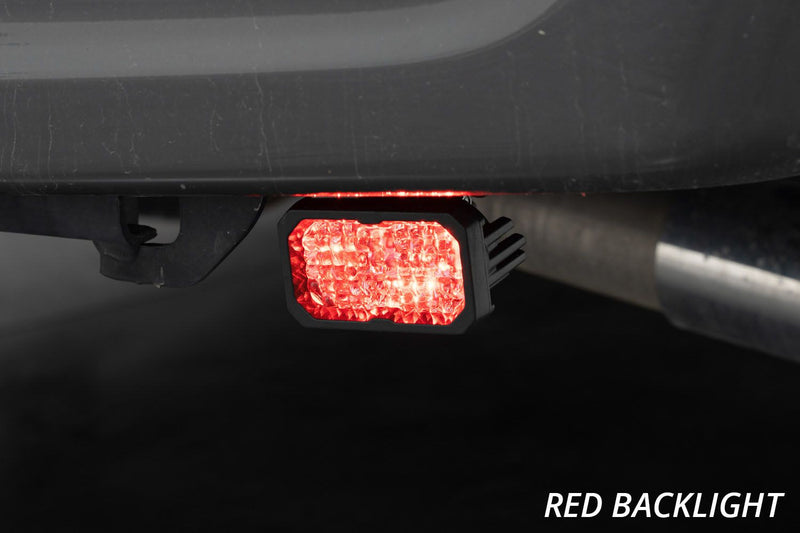

Backlight Functionality. The Stage Series LED pods included with this kit feature a distinctive backlight in a vibrant red color which functions as an additional accent light while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of our pods is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Patterns. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.



Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Specifications

NOTE: Specifications listed here are for each individual pod.

LENS COLOR/OPTICSPEAK BEAM INTENSITY
(CANDELA)
ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
SSC1 Sport400 cd4 lux1,030 lm1,449 lm6000K White
SSC1 Pro925 cd9 lux2,300 lm2,375 lm6000K White
SSC2 Sport375 cd4 lux871 lm1,130 lm6000K White
SSC2 Pro700 cd7 lux1,988 lm2,898 lm6000K White



What do these terms mean?

Datasheet(s) (click to download): SSC2 Sport White Standard, SSC2 Pro White Standard, SSC1 Sport White Standard, SSC1 Pro White Standard

Color Temp (CCT): 6000K

Beam Angle: Flood, 80°x50°

Power (watts): SSC1 Sport: 12.8, SSC1 Pro: 19, SSC2 Sport: 7.7, SSC2 Pro: 25.6

Operating Voltage: 9-16V

Current (amps @ 12.8V): SSC1 Sport: 1, SSC1 Pro: 1.5, SSC2 Sport: 0.6, SSC2 Pro: 2

Polarity: Polarity Specific

Operating Temperature: -40C to 85C (-40F to 185F)

LED Emitter: Luxeon Z ES, Cree XP-L HI, Cree XHP50

Connector(s): Deutsch DT Input

Driver Features: Constant Current

Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket

Cooling: Passive, Pin-Fin heatsink

Compliance Ratings: SAE J575 Durability Test

Intrusion Ratings: IP67 Weatherproof

Unit Weight (lb): SSC1: 3.40 SSC2: 3.70

Product Weight (lb): SSC1: 4.20 SSC2: 4.80

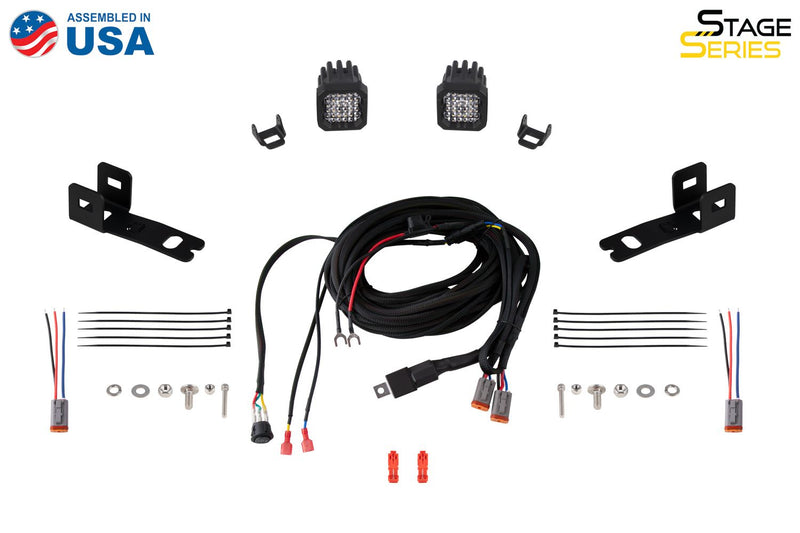

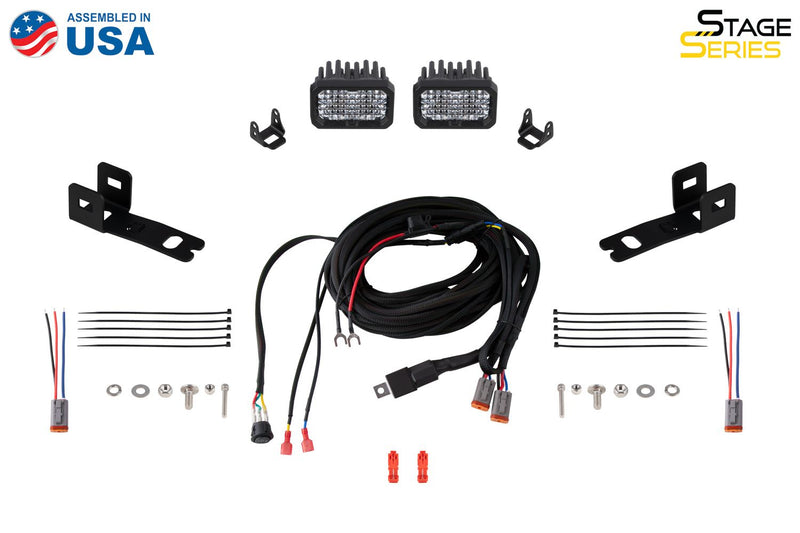

What's Included

In the Box:

  • Two (2) SSC1 or SSC2 Standard LED Pods
  • One (1) Adapter Harness for 2021+ Ford F-150
  • One (1) Universal Reverse Light Wiring Harness
  • Two (2) Mounting Brackets for 2021+ Ford F-150
  • Two (2) Universal mounting brackets
  • Ten (10) Zip Ties
  • Two (2) T-Taps
  • Mounting hardware

Quantity: Two (2)

Warranty: 8 year warranty

Return Policy: 30-day Return with no restocking fee

100% Satisfaction Guarantee

Installation

Installation Time: 1-2 hours

Tools Needed: Basic Toolset

Installation Guide: Click to download
