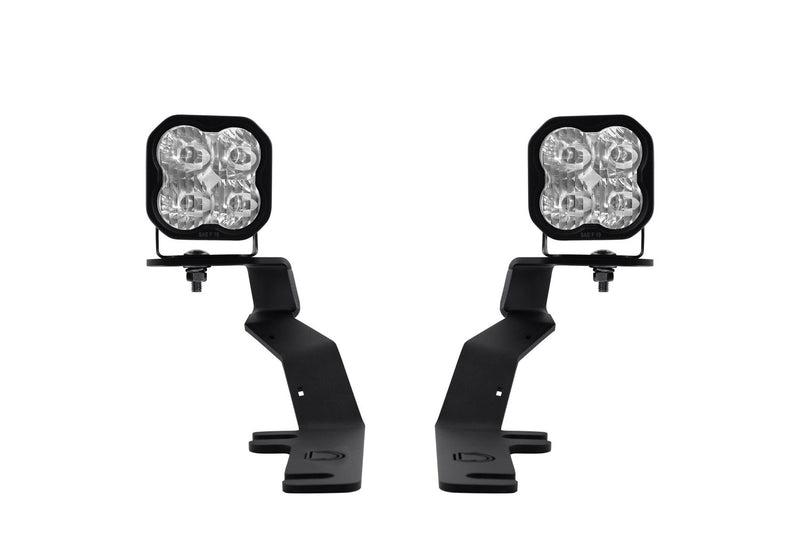

SS3 LED Ditch Light Kit for 2015+ F150 2017-2020 Ford Raptor

  • Unit price per
  • Save $0



Features

  • Bolt-on fitment for 2017-2020 Ford Raptor.
  • Allows you to mount two SS3 LED Pods above the hood.
  • Utilizes existing mounting points and hardware for a simple installation.
  • Thick-gauge stainless steel construction.
  • Low-profile design.

Overview

Perfect fitment. The SS3 LED Ditch Light Kit for the 2017-2020 Ford Raptor allows you to easily mount two SS3 Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare, and will not interfere with raising or lowering the hood.

Built to last. The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel, these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction, you also won't experience any vibration or bouncing while driving.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional output. The Stage Series Driving beam pattern is designed to supplement your high beams, but it’s great for general illumination as well. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds. For states that require them, we also offer snap-on covers for your SS3 Pod. These covers are available in a variety of colors and keep your SS3 Pod clean and protected from dirt, dust, or whatever else the road throws your way!

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your SS3 Pods.

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!


What's Included

In the Box:
  • Two (2) SS3 3” Standard LED Pods
  • Two (2) Ditch light brackets
  • Two (2) SS3 Mounting brackets
  • One (1) Heavy-duty dual output wiring harness
  • Mounting hardware
  • Mounting guide

Quantity: Pair (Left and Right Side)

Warranty: 8 year warranty

Return Policy: 30-day Return with no restocking fee

100% Satisfaction Guarantee

Fitment

Make: Ford

Model: Raptor

Years: 2017, 2018, 2019, 2020



Specifications

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
Driving White Sport 54,700 cd 547 lux 1,520 lm 2,262 lm 6000K White
Driving White Pro 66,500 cd 665 lux 3,000 lm 5,796 lm 6000K White
Driving Yellow Sport 53,500 cd 535 lux 1,300 lm 1,930 lm 3000K Yellow
Driving Yellow Pro 60,900 cd 609 lux 2,700 lm 5,220 lm 3000K Yellow
Color Temp (CCT): 3000K, 6000K

Beam Angle: Driving, 20°x8°

Power (watts): Sport: 14.5, Pro: 36

Operating Voltage: 9-16V

Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7

Polarity: Polarity Specific

Operating Temperature: -40C to 85C (-40F to 185F)

LED Emitter: Luxeon Z ES, Cree XP-L HI

Connector(s): Deutsch DT Input

Driver Features: Constant Current

Materials: Polycarbonate Lens, Powdercoated Steel, Aluminum Casting, Rubber Gasket

Cooling: Passive, Pin-Fin heatsink

Compliance Ratings: SAE J575 Durability Test

Intrusion Ratings: IP67 Weatherproof

Fitment

Make: Ford

Model: Raptor

Years: 2017, 2018, 2019, 2020

What's Included

In the Box:
  • Two (2) SS3 3” Standard LED Pods
  • Two (2) Ditch light brackets
  • Two (2) SS3 Mounting brackets
  • One (1) Heavy-duty dual output wiring harness
  • Mounting hardware
  • Mounting guide

Quantity: Pair (Left and Right Side)

Warranty: 8 year warranty

Return Policy: 30-day Return with no restocking fee

100% Satisfaction Guarantee
