Description

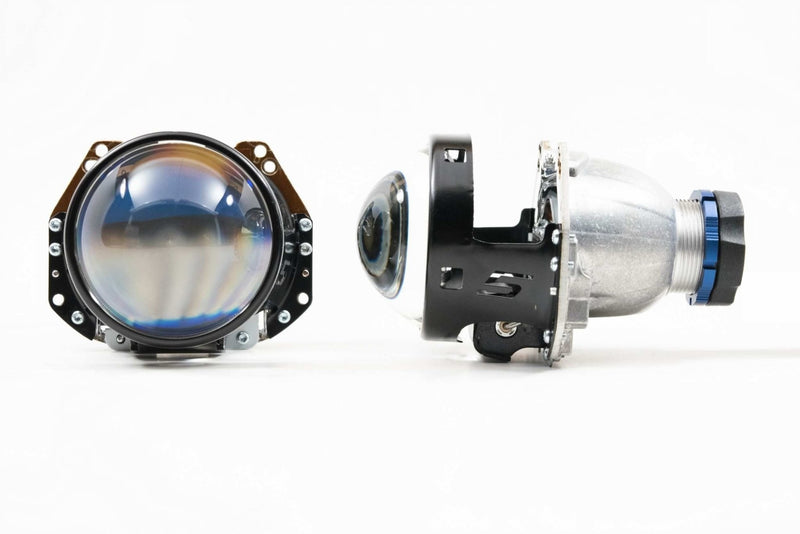

ROUND THREE: Based around the best performing Mini D2S projector to date, the Morimoto Mini D2S Stage III System features excellent performance at an accessible price. With all the parts options from their big brother bi-xenon projectors, but re-worked into a HID projector kit that’s much easier to install; the Morimoto Mini D2S Projectors makes headlight performance more accessible to all.
PROJECTOR-PERFECTION: There are other projectors that produce brighter hot spots. There are other projectors that have unholy amounts of width….but no other option creates the perfect balance of width & hotspot lux (aka distance) quite like the 5.0. In order to create the ultimate weapon for driving in the dark, Morimoto baked in all of the best practices from a variety of well-respected OEM and aftermarket projectors. Their latest and greatest equates to the perfect all-around perfomer. While it's a big boost in the performance department, it’s also clear they’ve paid attention to the details in the parts department too. New bulb holders & lock rings are icing on our projector pie!
SHROUDS: Basically, they're the trim piece that adds the finishing touch to your new headlight retrofit. They cover the bi-xenon projector after it’s installed to restore the factory-finished look inside the housings. With so many different shapes, sizes, and designs available; we really recommend picking one that suits the geometry inside of your headlights, and also your personal preference on how they look. Check out all of the projector shroud options we offer, and take your pick!
HID BALLASTS: Designed in California by Morimoto’s engineer, Yoshi Ishida, the Morimoto XB 2.0 HID Ballasts are just as good looking on the outside as they are well-engineered on the inside. They are available in both 35w and 50w versions, use proprietary software by the pros at Hylux paired with packaging perfection from the masters at Morimoto. This is today’s most modern iteration of a model that has sold more than half a million units since inception, and we don’t think it can really get any better!
D2S HID BULBS: Homegrown by Morimoto to out-perform any alternatives on the market when installed in projector-based headlights…and it shows. We admit the latest generation XB HID bulbs are pretty impressive when compared to other bulbs, and even older Morimoto bulbs. At the heart of the XB bulbs is their perfectly-aligned 100% Philips quartz glass capsule that houses high quality halide salts from German-supplier Messer. In our annual lux comparison test, they produced nearly the same luminosity (intensity) as the industry benchmark Osram CBI bulbs at 5500K. No, you're not seeing things here, but yes you will be seeing everything at night.
WIRE HARNESS: As one of the most important parts in any HID lighting upgrade; don't skimp out when it comes to your wiring. It doesn't matter how good your ballasts are. How good your bulbs are. If your harness is a piece of crap, when it gives out your headlights are gonzo. Morimoto’s harnesses are the best on the market and easily worth their premium price compared to cheaper alternatives. No matter which one is right for your application, the harness features triple-sealed central relay packs, 14ga stranded copper wiring, over-molded fittings, and plug-n-play functionality. This will ensure everything properly (and permanently) works with your vehicle’s original in-cabin controls.
OPTIONAL CANBUS HARNESSES: Instead of a traditional relayed harness that draws power from the battery, Morimoto’s Standalone Canbus harnesses use two individual sub-harnesses to keep a load on the factory wiring. Recommended for vehicles that recognize when a bulb is out, these contain a series of capacitors and resistors to trick the car into thinking nothing has changed and help you avoid annoying "bulb out" warnings. We generally recommend them for use on most modern European applications instead of normal harnesses since they do a great job at providing stable power to the ballasts and canceling bulb out warnings.
OPTIONAL LED HALOS: Though LED halos may not be for everybody, if you’re looking for the cleanest, most simple, most reliable setup, we highly recommend the Profile Performance Pivot Halos. Not only are they the brightest, most uniformly lit halos currently on the market, but they double as a switchback turn signal with your blinker circuit. The integrated controllers are extremely easy to setup with only three wires (white, amber, and ground) and allow you to run the white mode continuously until interrupted by the signal – at which point they will blink amber. Once the signal stops, the Pivot ring will automatically switch back to its pure white mode.
OPTIONAL HOUSING SEALANT: Protection is priceless! When you're putting together a set of high-end headlights, the last thing you want is moisture in 'em the first time it rains outside. RetroRubber is the most effective way to make sure the original seal is fully restored. For the small price, why anybody wouldn’t prevent their new headlights from fogging up is beyond us. It’ll be the best twelve bucks you’ve ever spent.
OVERVIEW VIDEO: Check out this helpful video to see how easy Mini D2S projectors are to install!
TRUSTED: For more than a decade, we've worked hard to earn our killer reputation. Car guys world-wide know that TRS carries the internet's best selection of high performance automotive and powersport lighting products at the best prices, and we've got the best, most knowledgeable team of real enthusiasts to help back it up. If we sell it, then you bet we've put it to the test on our own cars, trucks, and bikes.
PRODUCT SPECS
-
WHAT'S INCLUDED
-
PROJECTORS: 2x Morimoto Mini D2S 5.0
-
SHROUDS: 2x Your Preference
-
HID BALLASTS: 2x Morimoto XB35 D2S or XB55 D2S
-
HID BULBS: 2x Morimoto XB
-
WIRE HARNESS: 1x Your Preference
-
WARRANTY: 5 Years (35w) or 3 Years (50w)
-
OPTIONAL HOUSING SEALANT: 1x Morimoto RetroRubber
-
OPTIONAL LED HALOS: 2x Profile Pivot
-
COMPATIBILITY
-
APPLICATIONS: Universal / Size Allowing
-
CAPABILITIES: Both Low & High Beam
-
PROJECTOR WIDTH: 101mm
-
PROJECTOR HEIGHT: 85mm
-
PROJECTOR DEPTH: 142mm
-
PROJECTOR LENS: 3.0 Inches
-
MOUNTING SHAFT: 35mm diameter (H4 direct fit)
-
MINIMUM HOUSING DEPTH: 117mm
-
WIRE HARNESS: Match your original bulb size
-
SHROUDS: All styles except "Mini" models
-
LED HALOS: Varies according to shroud style
-
CERTIFICATIONS: Exceeds DOT requirements
-
TECH SPECS
-
OPERATING RANGE: -40C to +125C
-
XB BALLAST INPUT: 9-32VDC
-
XB BALLAST OUTPUT: 85VAC 35/50W
-
XB BALLAST MAX V: 25kV (at start-up)
-
XB35 BALLAST LIFESPAN: 2500 Hours
-
XB55 BALLAST LIFESPAN: 2000 Hours
-
3000K BULBS: Golden Yellow (~2800 lm)
-
4500K BULBS: Warm White (~3500 lm)
-
5500K BULBS: Pure White (~3400 lm)
-
6500K BULBS: Cool White (~3200 lm)
-
XB55 50W BALLASTS: (+20% intensity) (-1000K color)
