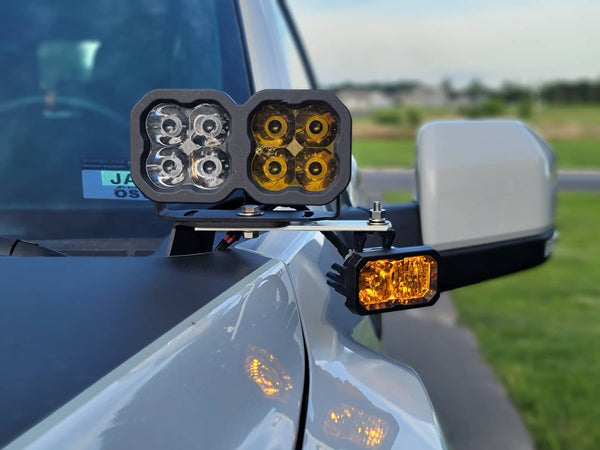

Features Bolt-on fitment for 2015+ F150 and 2017-2020 Ford Raptor. Allows you to mount two Stage Series LED Pods above the hood. Utilizes existing mounting points and hardware for a simple installation. Thick-gauge stainless steel construction. Low-profile design. Overview Perfect fitment. The Stage Series LED Ditch Light Kit for the 2015+ F150 and 2017-2020 Ford Raptor allows you to easily mount two SS3 Pods above the hood. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit features a low profile design while minimizing glare, and will not interfere with raising or lowering the hood.
Built to last. The brackets in this kit are constructed out of thick-gauge stainless steel. Unlike other options made out of mild steel, these brackets are full stainless steel and won't corrode over time. With their thick-gauge construction, you also won't experience any vibration or bouncing while driving.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 and SSC2 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video .
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 and SSC2 serves as both the optic and main lens for greater efficiency and light output. Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the Stage Series Pod is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
Functional output. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
Combo combines both the Driving and Flood optics. The SS3 shines light downrange in a focused, rectangular 65x25 degree pattern, while the SSC2 shines light downrange in a 40x20 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.
For states that require them, we also offer snap-on covers for your SS3 and SSC2 Pods. These covers are available in a variety of colors and keep your Stage Series Pod clean and protected from dirt, dust, or whatever else the road throws your way!
White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your SS3 or SSC2 Pods.
Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power. Click the Specifications tab to see more information.
Backlight Functionality. All SSC2 Ditch Light Kits include a distinctive Amber backlight feature. The SSC2's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Specifications (White SS3 pods) LENS COLOR/OPTICS PEAK BEAM INTENSITY (CANDELA) ILLUMINANCE (LUX @ 10M) MEASURED OUTPUT (LUMENS) RAW OUTPUT (LUMENS) OUTPUT COLOR Driving Sport 54,700 cd 547 lux 1,520 lm 2,262 lm 6000K White Driving Pro 66,500 cd 665 lux 3,000 lm 5,796 lm 6000K White Driving Max 98,000 cd 980 lux 3,500 lm 7,920 lm 6000K White Flood Sport 1,750 cd 18 lux 1,520 lm 2,262 lm 6000K White Flood Pro 3,100 cd 31 lux 3,000 lm 5,796 lm 6000K White Flood Max 2,600 cd 26 lux 3,500 lm 7,920 lm 6000K White Fog Sport 10,600 cd 106 lux 1,520 lm 2,262 lm 6000K White Fog Pro 11,900 cd 119 lux 3,000 lm 5,796 lm 6000K White Fog Max 18,000 cd 180 lux 3,500 lm 7,920 lm 6000K White Spot Sport 151,000 cd 1,510 lux 1,520 lm 2,262 lm 6000K White Spot Pro 131,500 cd 1,315 lux 3,000 lm 5,796 lm 6000K White Spot Max 251,000 cd 2,510 lux 3,500 lm 7,920 lm 6000K White Combo Sport 31,500 cd 315 lux 1,520 lm 2,262 lm 6000K White Combo Pro 35,100 cd 351 lux 3,000 lm 5,796 lm 6000K White Combo Max 46,000 cd 460 lux 3,500 lm 7,920 lm 6000K White
Specifications (Yellow SS3 Pods) LENS COLOR/OPTICS PEAK BEAM INTENSITY (CANDELA) ILLUMINANCE (LUX @ 10M) MEASURED OUTPUT (LUMENS) RAW OUTPUT (LUMENS) OUTPUT COLOR Driving Sport 53,500 cd 535 lux 1,300 lm 1,930 lm 3000K Yellow Driving Pro 60,900 cd 609 lux 2,700 lm 5,220 lm 3000K Yellow Flood Sport 1,600 cd 16 lux 1,300 lm 1,930 lm 3000K Yellow Flood Pro 2,850 cd 29 lux 2,700 lm 5,220 lm 3000K Yellow Fog Sport 9,050 cd 91 lux 1,300 lm 1,930 lm 3000K Yellow Fog Pro 10,900 cd 109 lux 2,700 lm 5,220 lm 3000K Yellow Fog Max 12,500 cd 125 lux 3,500 lm 7,920 lm 3000K Yellow Spot Sport 149,000 cd 1,490 lux 1,300 lm 1,930 lm 3000K Yellow Spot Pro 118,500 cd 1,185 lux 2,700 lm 5,220 lm 3000K Yellow Combo Sport 28,100 cd 281 lux 1,300 lm 1,930 lm 3000K Yellow Combo Pro 33,406 cd 334 lux 2,700 lm 5,220 lm 3000K Yellow
What do these terms mean?
Datasheet(s) (click to download): SS3 Sport White Standard , SS3 Sport Yellow Standard , SS3 Pro White Standard , SS3 Pro Yellow Standard , SS3 Max White Standard , SS3 Max Yellow Standard
Power (watts): Sport: 14.5, Pro: 36, Max: 38.5
Operating Voltage: 9-16V
Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7, Max: 3
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP69K Waterproof, High Pressure
